RF Pro Touch
A handheld fractional RF system with a 3.5-inch touch screen and four interchangeable operation heads — 12P, 25P, 41P, and Nano — for precise, customizable treatment across the face, neck, and body.
- 4 Interchangeable Probe Heads
- 0.5 – 6.0 mm Depth Range
- 1 MHz RF Frequency
- 3.5" Touch-Control Screen
Probe Heads
4 Interchangeable
Depth Range
0.5 – 6.0 mm
RF Frequency
1 MHz
Touch Screen
3.5" Display

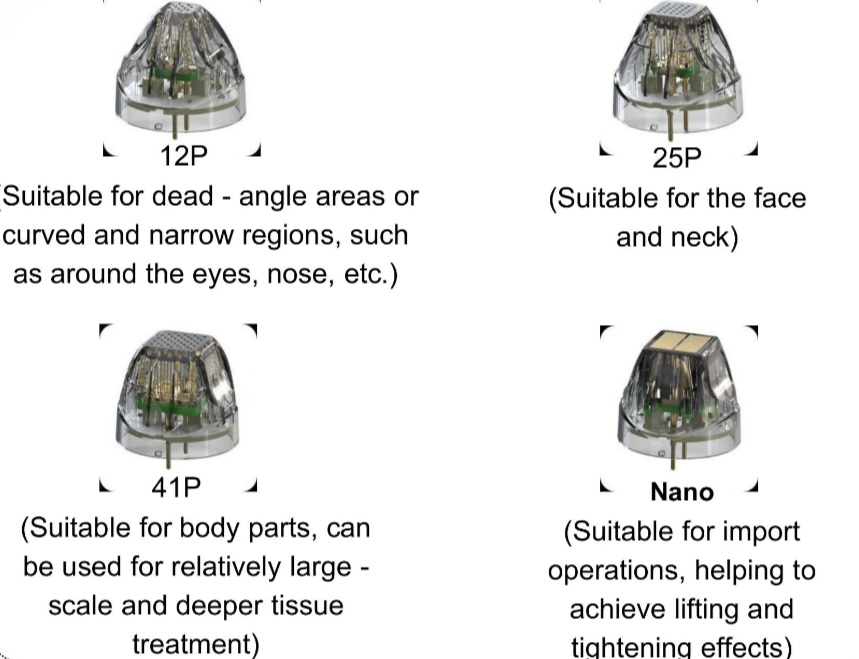

Accessory Instructions
4 Replaceable Operation Heads
01
Probe 12P
Suitable for dead-angle areas or curved and narrow regions, such as around the eyes and nose.
02
Probe 25P
Suitable for the face and neck — soft tissue and bony areas.
03
Probe 41P
Suitable for body parts, for relatively large-scale and deeper tissue treatment.
04
Probe Nano
Suitable for import operations, helping to achieve lifting and tightening effects.

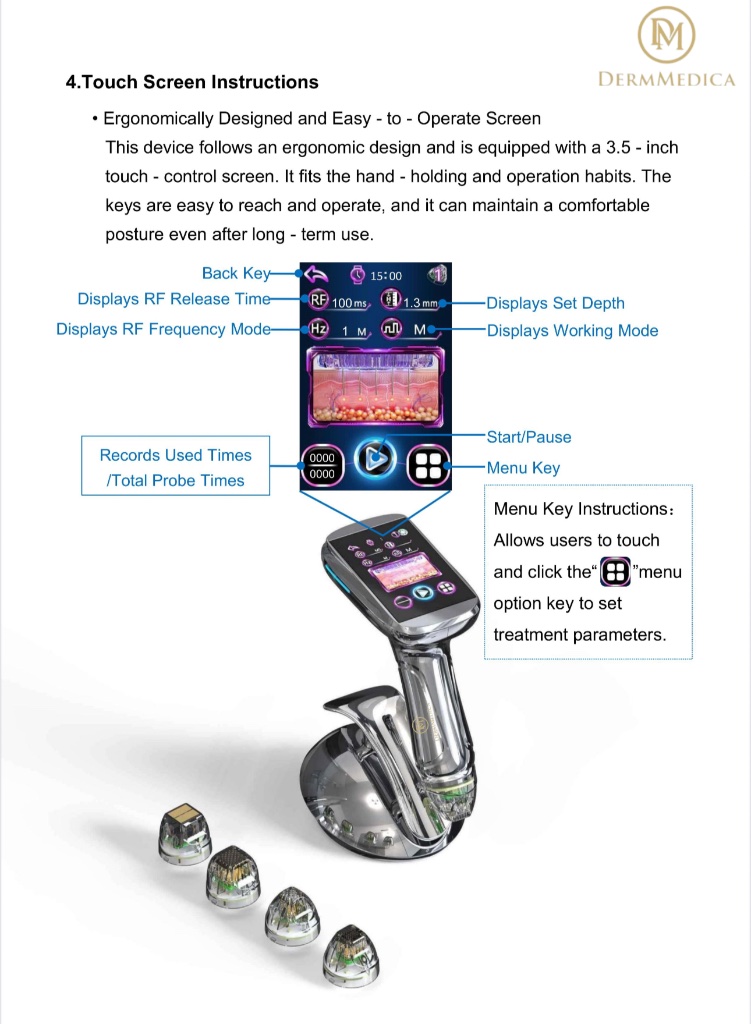

Touch Screen Instructions
Ergonomic, Easy-to-Operate Screen
This device follows an ergonomic design and is equipped with a 3.5-inch touch-control screen. It fits hand-holding and operation habits — the keys are easy to reach and operate, maintaining a comfortable posture even after long-term use.
3.5-inch touch-control screen, ergonomically designed for comfortable long-term use
Back Key, Menu Key, and Start/Pause controls are easy to reach and operate
Displays RF release time, frequency mode, set depth, and working mode
Records used times / total probe times for accurate cartridge tracking
Insulated RF Technology
Bipolar RF + Insulated Microneedling
Insulated needles deliver bipolar radio-frequency energy precisely to the target dermal layer, while the needle surface stays non-conductive — protecting the epidermis from thermal damage and channeling energy where remodeling is needed most.
M Mode — Basic Single-Layer
Focused energy delivered at one set depth for targeted, predictable treatment.
N Mode — Multi-Layer Burst
Layered energy stacks across multiple depths for comprehensive collagen remodeling.
50 W Power · 1 MHz Frequency
Consistent, adjustable output from 100–800 ms release time.

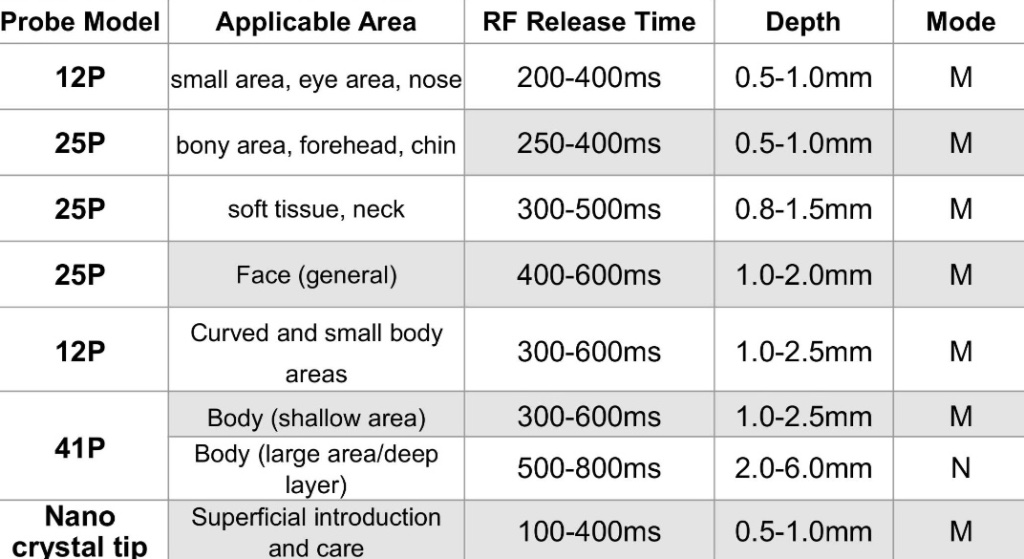

Treatment Planning
Usage Parameters & Course Planning
To precisely match treatment needs, applicable areas and operation parameter suggestions for different probe models are listed below.
| Probe Model | Applicable Area | RF Release Time | Depth | Mode |
|---|---|---|---|---|
| 12P | Small area, eye area, nose | 200–400ms | 0.5–1.0mm | M |
| 25P | Bony area, forehead, chin | 250–400ms | 0.5–1.0mm | M |
| 25P | Soft tissue, neck | 300–500ms | 0.8–1.5mm | M |
| 25P | Face (general) | 400–600ms | 1.0–2.0mm | M |
| 12P | Curved and small body areas | 300–600ms | 1.0–2.5mm | M |
| 41P | Body (shallow area) | 300–600ms | 1.0–2.5mm | M |
| 41P | Body (large area / deep layer) | 500–800ms | 2.0–6.0mm | N |
| Nano crystal tip | Superficial introduction and care | 100–400ms | 0.5–1.0mm | M |
Thin / Sensitive Skin
Start from low depth (0.5–1.0mm) + short time (100–300ms); use minimum values first for the neck and periorbital area.
Thick / Tolerant Skin
Can try deep depth (2.0–6.0mm) + long time (500–800ms) to enhance anti-aging effects.
Dark Skin
When depth > 1.0mm, reduce RF release time by 50–100ms vs. normal to lower the risk of pigmentation.
Subcutaneous Fat ≥ 1cm
Adopt a depth setting of more than 4mm for the treatment area.
Nursing Treatment Course
- Treatment interval: once every 4–6 weeks
- Course setting: 3–5 sessions per course of treatment
- Typical number of treatments: 3 to 5, depending on energy used and treatment purpose
Note: Parameters need to be dynamically adjusted in combination with skin quality and tolerance. It is recommended to start from the basic values and optimize step by step.
Clinical Results
Effect Comparison, Documented
Before-and-after outcomes across face, neck, body, arms, and thighs — documented across full treatment courses.
Full Specifications
Technical Specification Sheet
- Screen
- 3.5" Touch-Control
- Probe Heads
- 4 (12P · 25P · 41P · Nano)
- Depth Range
- 0.5 – 6.0 mm (Adjustable)
- RF Frequency
- 1 MHz
- RF Release Time
- 100 – 800 ms
- Working Modes
- M / N
- Applicable Areas
- Face · Neck · Body
- Probe Tracking
- Used / Total Times Recorded
Own the RF Pro Touch
Purchase the DermMedica RF Pro Touch
Priced at $2,000 with clinical onboarding and the full 4-probe starter set included.
Shipping costs for professional equipment are calculated separately based on the device size and delivery destination. Please contact DermMedica for a shipping quote before purchasing.
Questions & Answers
Frequently Asked Questions
Most patients see visible tightening after 1–2 sessions, with optimal results from a course of 4–6 sessions spaced 2–4 weeks apart. Maintenance treatments every 3–6 months help sustain the lifting and contouring effects.
